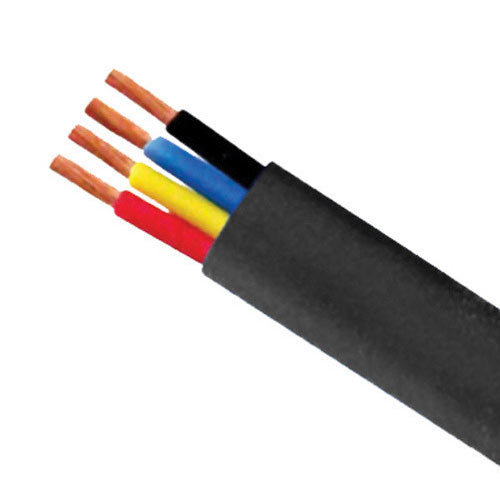

Cáp dẹt - FLAT REELING CABLE TYPE TFLLRC 0.6/1KV 4C*95SQ
Cáp dẹt - FLAT REELING CABLE TYPE TFLLRC 0.6/1KV 4C*95SQ
Cable Size: 4C*95 SQMM
Type of Cable: Reeling Cable
Rate Voltage: 0.6/1KV
Conductor: 4C x 95mm2, Flexible tinned copper (IEC 60228 Class 5)
Conductor Tape: Polyester tape
Insulation: 1.6mm, EPR (Better than IEC 60502-1), White, Black, Brown,Blue.
Reinforce Layer: Polyester yard braid
Core Screen: Polyester tape
Inner Sheath: 2.0mm, PCP (Polychloroprene Rubber)
Outer Sheath: 3.5mm, PCP (Polychloroprene Rubber)
Cable color: Black
Approximate overall diameter: 92.9/29.6
Approximate weight of completed cable: 6,991 Kg/Km
Max. D.C resistance at 20°C: 0.1 Ω /Km
